ITX-IL Suspended Solids Sensor
Cerlic

The ITX sensor is the economic version of the CMC, measuring the Suspended Solids rather than the Total Solids. It uses a single beam of pulsed NIR-light and an automatic cleaning system with built-in flushing nozzles to ensure accurate measurements with little maintenance. Similar to the CMC, its measurement allows the VOLUTE™’s Control Panel to instruct the feeding pump to adjust the inlet flow or the polymer station to adapt the polymer dosing accordingly.

Consultation & Quotation Brochure Download

ADVANTAGES

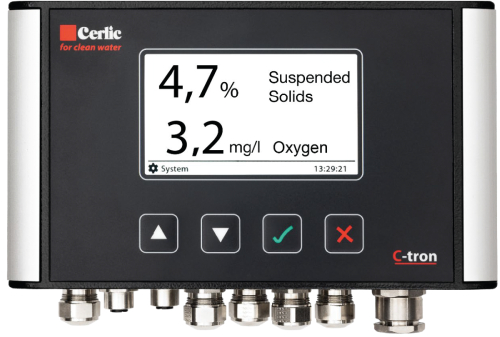

Both sensors are combined and connected to a powerful Control Box that can support up to four different sensors for simultaneous operation. The user-friendly interface makes it easy to navigate. You can manage sensor calibration and settings in just a few simple steps.

The smart built diagnostic software is ensuring the functionality of each sensor with interactive feedback. The Relay outputs in the Control Box are used for high and low alarms or to provide a pulse for automatic cleaning

Advantages

  • Maintenance free tool
  • Single point calibration for all concentrations
  • Low installation and lifetime costs
  • Reliable & accurate
  • Not affected by process or media changes
  • Easy-to-use display
  • Wide TS measurement range

Technical details

The sensor can be mounted in-line using a T-piece with isolation valve for applications up to 6 bar. Alternatively, it can be suspended from a telescopic rod or chain to measure the Suspended Solids in tanks.

List of Case Studies

Flow for Product Installation

流れ
Feel free to contact us. After collecting information about your treatment process and needs, we will recommend the most suitable model for your situation. You can use our free sample analysis service if you are unsure about dosage rates and polymer type; we will send you a report stating the expected amount and type of polymer to be dosed, dry solids content of the dewatered cake, recommended technology, etc. Based on your requests we will then prepare a tailored solution proposal. Before handover of the equipment, our service engineer will commission the unit on site and train the local operators to ensure the optimal result for you.
