The sludge thickener of VT series thickens sludge with concentration of 1% or less to that with a concentration of 4 to 6%.
This mechanical thickening will constantly produce stable thickened sludge, which is difficult with gravity thickening.
It is possible to install as pre-thickener for your existing belt press or centrifuge to improve their dewatering performance.
Furthermore, even in some facilities where the dewatered cakes are not easily transported, the volume of sludge to be disposed of can be reduced by thickening and yet it is still easily transported (pumped) as it is still in liquid form.

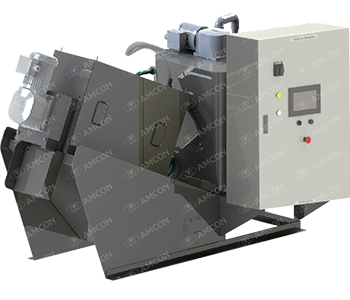

VOLUTE™ sludge thickening press - VT series

Sludge Thickener VOLUTE™

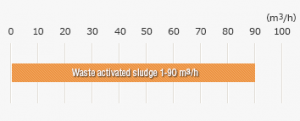

Throughput

Specifications List
Model | Throughput [m3/h] | Dimensions [mm] | Total Power Consumption [kW] | Weight [kg] | |||
---|---|---|---|---|---|---|---|
L | W | H | Empty | Operation | |||
VT-101 | up to 1 | 1771 | 906 | 1250 | 0.3 | 180 | 310 |
VT-131 | up to 3 | 1771 | 906 | 1250 | 0.3 | 190 | 320 |
VT-201 | up to 10 | 2498 | 936 | 1819 | 1.12 | 545 | 865 |
VT-301 | up to 30 | 3520 | 1331 | 2106 | 1.5 | 845 | 1655 |
VT-302 | up to 60 | 4045 | 1495 | 2106 | 3 | 1410 | 3020 |
VT-303 | up to 90 | 4220 | 1778 | 2105 | 4.45 | 1830 | 3980 |
* Capacity is based on waste activated sludge from biological treatment with TS 0.4% and thickening up to 4% with polymer.
* Throughput above is calculated as approximate and may vary depending on sludge condition. For model selection, please contact us.
* Throughput above is calculated as approximate and may vary depending on sludge condition. For model selection, please contact us.
