Process Flow

AMCON » Process Flow

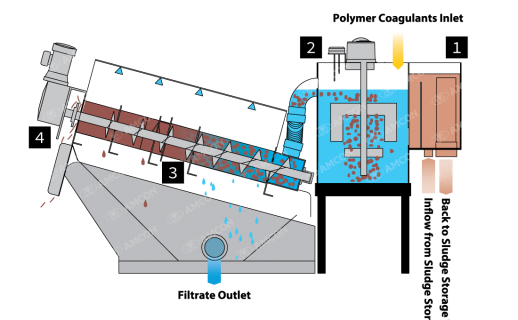

VOLUTE Dewatering Press without Sludge Conditioning Tank

VOLUTE process flow without conditioning tank
VOLUTE dewatering press Flow control tank

1Flow Control Tank

Sludge feed is regulated with the overflow pipe, returning excess volume to the sludge storage tank.

p_flow_11

2Thickening Flocculation Tank

Polymer flocculant and sludge are stirred and mixed, forming floccs suitable for VOLUTE. Then, the built-in thickener in the tank instantly thicken the sludge.

VOLUTE dewatering press - cylinder

3Cylinder Unit

Sludge is instantly thickened at the thickening zone in the precedent stage, and dewatered at the dewatering zone in the subsequent stage under increasing inner pressure.
*Thickener contains no dewatering zone.

VOLUTE installation end plate
p_flow_6

4Discharge Outlet for Dewatered Cake /
Discharge Outlet for the Thickened Sludge

Further pressure is applied from the outlet side with the End Plate, discharging dewatered cake with 15% or higher solid content.
With a thickener, thickened sludge is discharged.
*Thickener is not equipped with End Plate.

VOLUTE Dewatering Press with Sludge Conditioning Tank

VOLUTE dewatering press process flow
p_flow_1

1Sludge Conditioning Tank

Additional chemical such as polyferric sulphate can be mixed by pump.

VOLUTE dewatering press Flow control tank

2Flow Control Tank

Sludge feed is regulated with the overflow pipe, returning excess volume to the sludge conditioning tank.

VOLUTE flocculation tank

3Flocculation Tank

Polymer and sludge are stirred and mixed, forming flocks suitable for VOLUTE.

VOLUTE dewatering press - cylinder

4Cylinder Unit

Sludge is instantly thickened at the thickening zone in the precedent stage, and dewatered at the dewatering zone in the subsequent stage under increasing inner pressure.

VOLUTE installation end plate

5Discharge Outlet for the Dewatered Cake

Further pressure is applied from the outlet side with the End Plate, discharging dewatered cake with 15% or higher solid content.

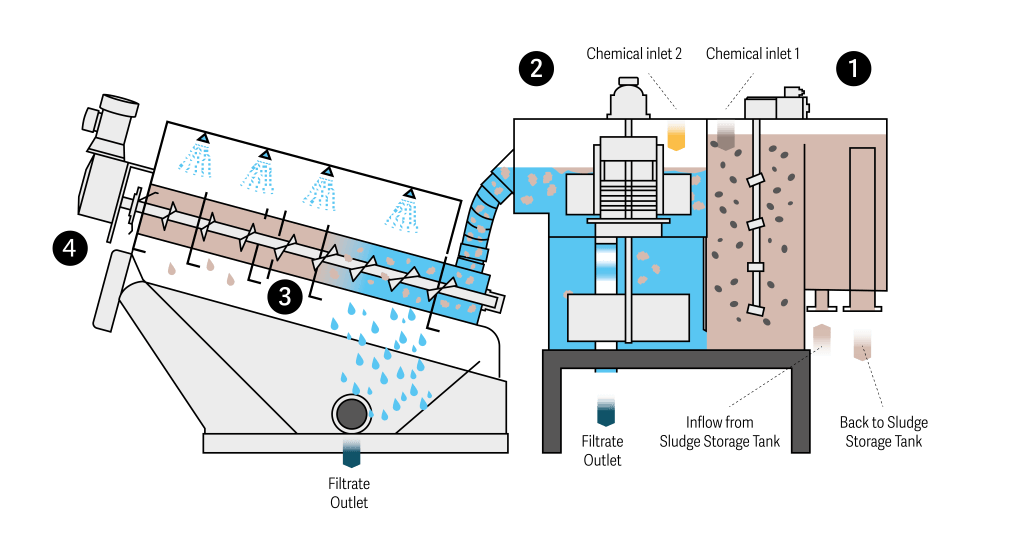

VOLUTE Dewatering Press without Sludge Conditioning Tank/Thickener

VOLUTE dewatering press process flow
VOLUTE dewatering press Flow control tank

1Flow Control Tank

Sludge feed is regulated with the overflow pipe, returning excess volume to the sludge storage tank.

VOLUTE flocculation tank

2Flocculation Tank

Polymer flocculant and sludge are stirred and mixed, forming floccs suitable for VOLUTE. Then, the built-in thickener in the tank instantly thicken the sludge.

VOLUTE dewatering press - cylinder

3Cylinder Unit

Sludge is instantly thickened at the thickening zone in the precedent stage, and dewatered at the dewatering zone in the subsequent stage under increasing inner pressure.
*Thickener contains no dewatering zone.

VOLUTE installation end plate
p_flow_6

4Discharge Outlet for Dewatered Cake /
Discharge Outlet for the Thickened Sludge

Further pressure is applied from the outlet side with the End Plate, discharging dewatered cake with 15% or higher solid content.
With a thickener, thickened sludge is discharged.
*Thickener is not equipped with End Plate.
